Product name
|

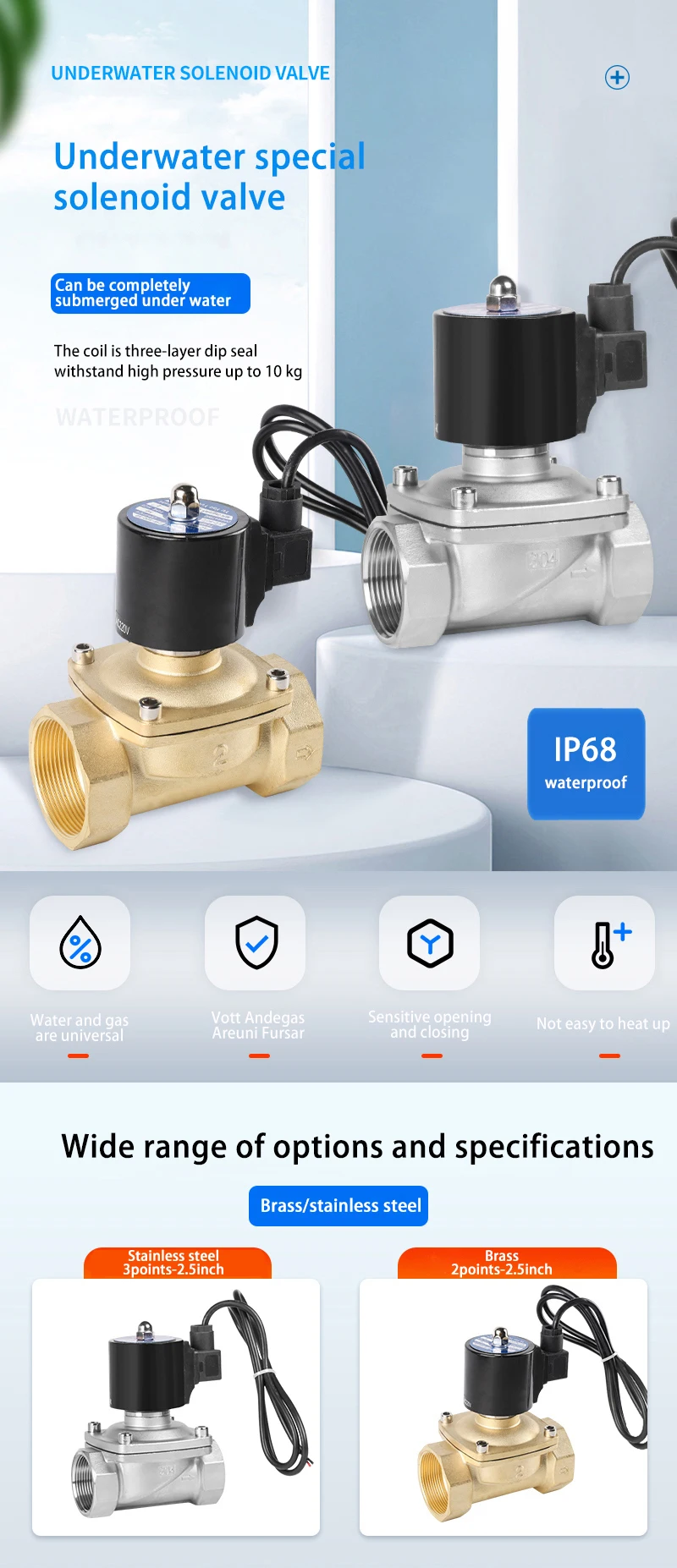

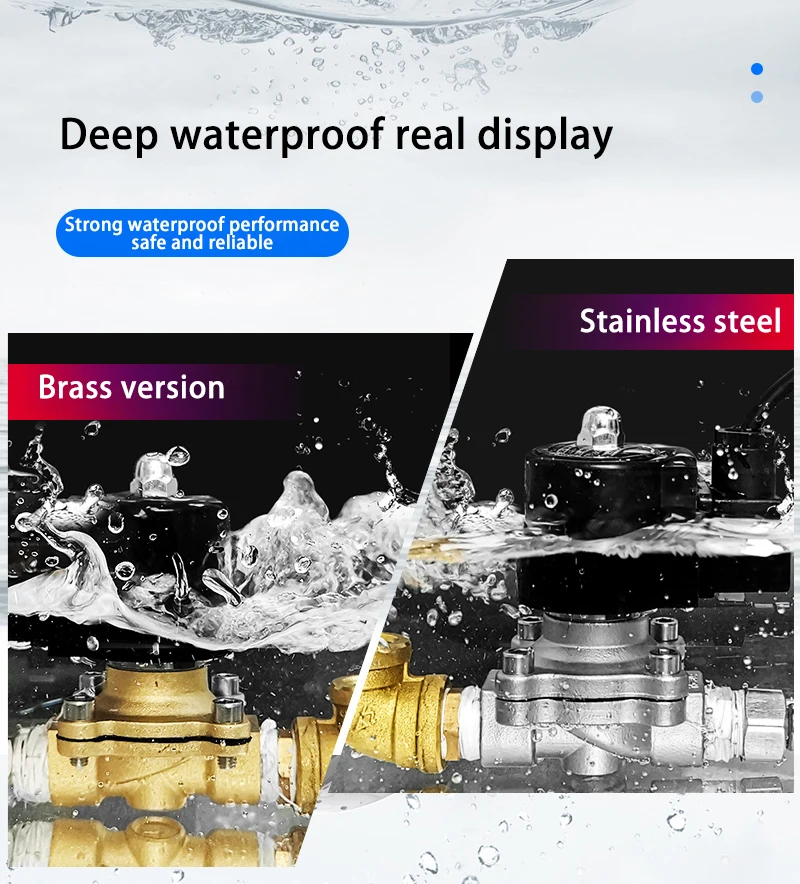

Normally closed type waterproof solenoid valve
|
|
Body material
|
Brass/stainless steel
|
|
Coil material
|
Copper core coils
|
|
Operating voltage
|
AC220V/DC24V
|
|
Pressure range
|

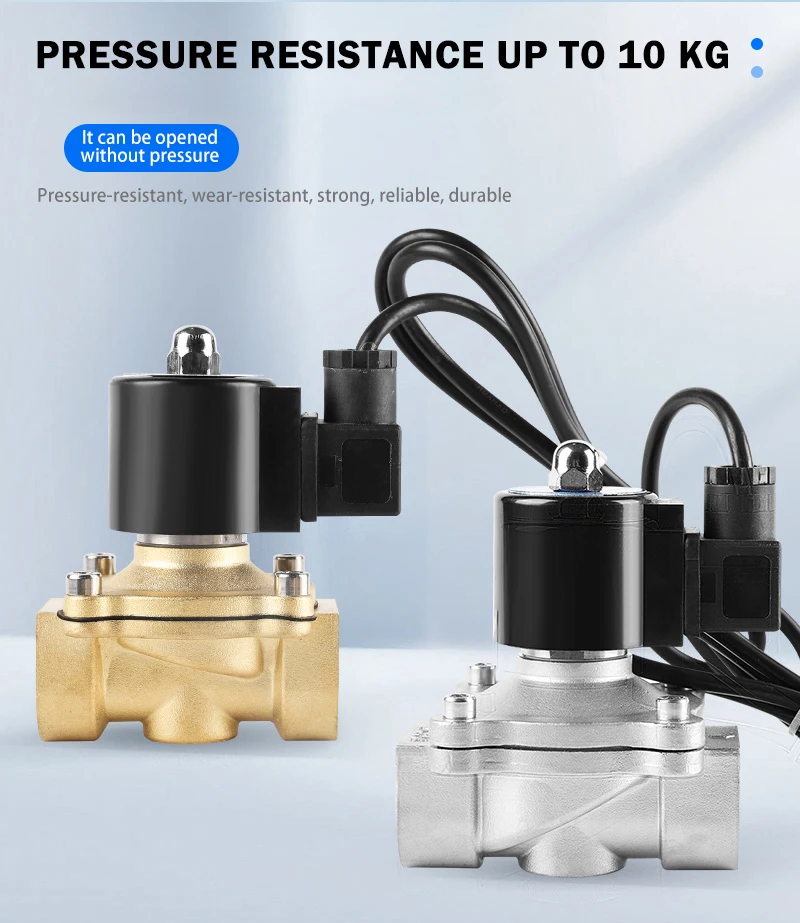

0-10 kg（0-1.0Mpa）
|
|
Fluid temperature
|
-5℃~80℃/150℃
|
|
Medium
|
No impurities, liquids, gases
|
|
The way to use
|
The valve is opened when the power is on, and the valve is closed when the power is off
|
|
Warranty Period
|
One year for the valve body, three months for fittings
|
| Product model | Take over caliber | PPR tube size | Metal tube size | Inner aperture | Flow caliber | Lenght | Height |
| 2W-08 | 1/4″
2points |
PPR10 | DN08 | 12mm | 2.5mm | 38mm | 84mm |
| 2W-10 | 3/8“
3points |
PPR15 | DN10 | 15mm | 10mm | 52mm | 85mm |
| 2W-15 | 1/2”
4points |
PPR20 | DN15 | 20mm | 16mm | 64mm | 107mm |
| 2W-20 | 3/4”
6points |
PPR25 | DN20 | 25mm | 20mm | 66mm | 111mm |
| 2W-25 | 1”
1inch |
PPR32 | DN25 | 30mm | 25mm | 84mm | 120mm |
| 2W-32 | 11/4”
1.2inch |
PPR40 | DN32 | 40mm | 32mm | 100mm | 134mm |
| 2W-40 | 11/2”
1.5inch |
PPR50 | DN40 | 48mm | 40mm | 108mm | 164mm |
| 2W-50 | 2”
2inch |
PPR63 | DN50 | 58mm | 58mm | 130mm | 176mm |
| Product model | Take over caliber | PPR tube size | Metal tube size | Inner aperture | Flow caliber | Lenght | Height |
| 2W-10 | 3/8″
3points |
PPR15 | DN10 | 15mm | 10mm | 68mm | 94mm |
| 2W-15 | 1/2″
4points |
PPR20 | DN15 | 20mm | 16mm | 68mm | 94mm |
| 2W-20 | 3/4″
6points |
PPR25 | DN20 | 25mm | 20mm | 72mm | 110mm |
| 2W-25 | 1”
1inch |
PPR32 | DN25 | 30mm | 25mm | 98mm | 108mm |
| 2W-32 | 11/4″
1.2inch |
PPR40 | DN32 | 40mm | 32mm | 111mm | 139mm |
| 2W-40 | 11/2″
1.5inch |
PPR50 | DN40 | 48mm | 40mm | 120mm | 146mm |
| 2W-50 | 2″
2inch |
PPR63 | DN50 | 58mm | 50mm | 135mm | 176mm |
| 2W-65 | 21/2″
2.5inch |
PPR75 | DN65 | 75mm | 65mm | 178mm | 204mm |
